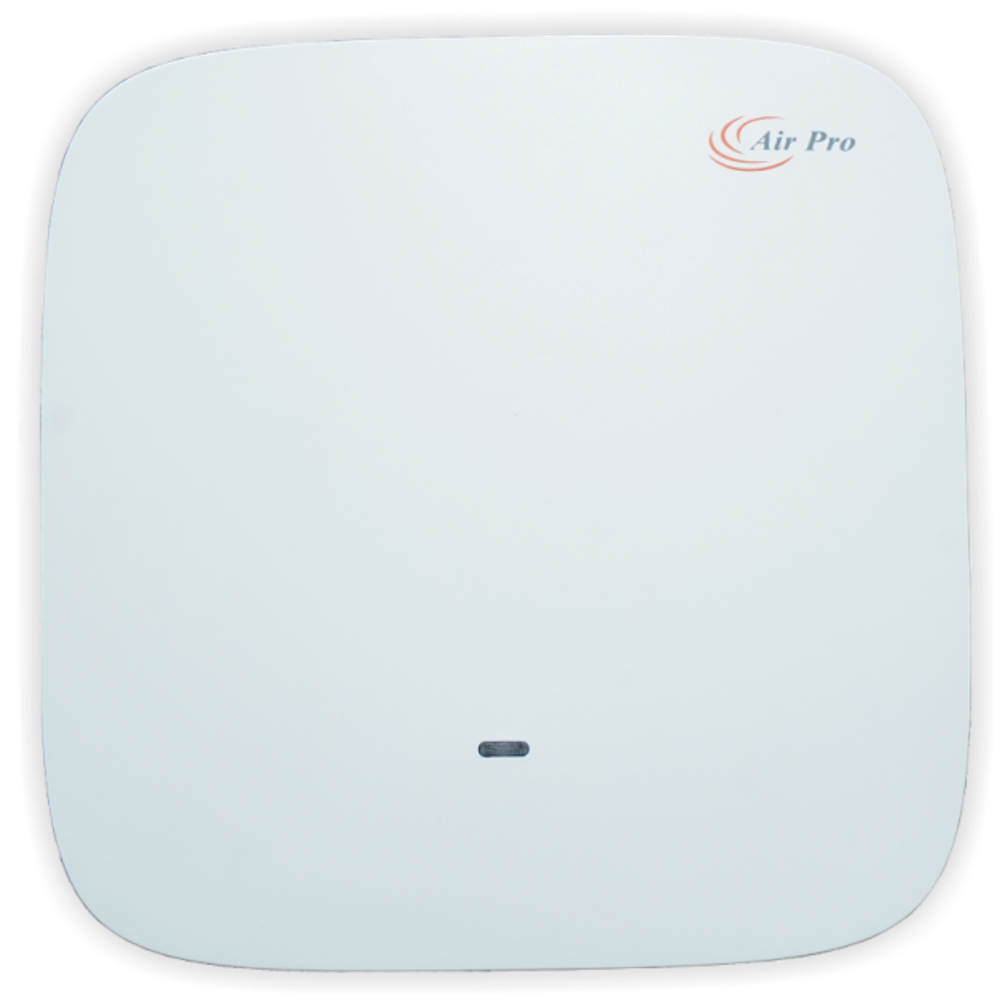

AIR-AP520, 1.75Gbps Dual Band 11ax Wi-Fi6 Ceiling Mount AP
- 1*WAN PoE 10/100/1000Mbps + 1*LAN*10/100/1000 Mbps
- Power PoE af
- 1.75Gbps 575Mbps on 2.4Ghz & 1.2Gbps on 5Ghz
- Radio Chain Streams 2x2
- Antenna Gain 4*5dbi
- NAT/Bridge
- Multiple SSID Up to 8
Highlight Features
- Wireless data rate up to 1.8Gbps
- 1024-QAM Modulation Mode
- DL/UL MU-MIMO
- TWT (Target Wake-up Time)
- Coverage Improvement
- Improvement of Anti-Interference Ability
Models
AIR-AP520
Series
WLAN APS & ACCESS CONTROLLERS
What This Product Does:-
AP520 is an 11ax Wi-Fi standard MTK Chipset high power industrial Ceiling Wireless Access Point. It supports MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.
Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) and 5GHz (1200Mbps 2*2), equipped with Gigabit WAN & LAN ports, supports MU-MIMO and DL/UL- OFDMA modulation, faster Ethernet data rate and more users, multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, can be used in high density access environment such as university campus, concert venue, gymnasium, etc.
Wireless data rate up to 1.8Gbps:-
802.11ax supports 1024QAM, long OFDM symbol, 160M bandwidth and 11ax 2×2 MIMO technology, wireless data rate up to 1.8Gbps, meets with demand of high-speed applications such as VR/AR, 4K or 8K stream media.
1024-QAM Modulation Mode:-
802.11ax adopt 1024-QAM modulation, which is more efficient than 802.11ac modulation, throughput of single spatial traffic is increased by 25%.
DL/UL MU-MIMO:-
802.11ax support both downlink MU-MIMO and uplink MU-MIMO. It can communicate with multiple end users at the same time, greatly improving the user’s uplink transmission rate and the system’s uplink and downlink capacity, improving the efficiency of multi-user concurrent scenarios, reducing the terminal application latency.
802.11ax support both downlink MU-MIMO and uplink MU-MIMO. It can communicate with multiple end users at the same time, greatly improving the user’s uplink transmission rate and the system’s uplink and downlink capacity, improving the efficiency of multi-user concurrent scenarios, reducing the terminal application latency.
TWT (Target Wake-up Time):-
802.11ax support TWT, allowing devices to negotiate when need to wake up, send and receive data. In addition, wireless AP can group the device into different TWT cycles, increase sleep time, reduce the device competing after wake-up, and save the device power.
802.11ax support TWT, allowing devices to negotiate when need to wake up, send and receive data. In addition, wireless AP can group the device into different TWT cycles, increase sleep time, reduce the device competing after wake-up, and save the device power.
Coverage Improvement:-
802.11ax supports long OFDM symbol transmission mechanism and 2MHz narrowband transmission, effectively reduces the packet loss rate and noise interference, improves the reception sensitivity and increases the Wi-Fi coverage.
802.11ax supports long OFDM symbol transmission mechanism and 2MHz narrowband transmission, effectively reduces the packet loss rate and noise interference, improves the reception sensitivity and increases the Wi-Fi coverage.
