AP-S6200, L3 Stackable Routing Switch with 100GE Fiber Uplink Ports
- 48 x 1G SFP/10G SFP+ and 6 x 100G QSFP28
- 1+1 power supplies (AC), 3+1 fans
- 1 console, 1 USB, 1 RJ45 management ports
- Forwarding performance: 600Mpps
- Switching capacity: 2.16Tbps
Highlight Features
- 48 x 1G SFP/10G SFP+ and 6 x 100G QSFP28
- 1+1 power supplies (AC), 3+1 fans
- 1 console, 1 USB, 1 RJ45 management ports
- Forwarding performance: 600Mpps
- Switching capacity: 2.16Tbps
Models
AP-S6200
Series
L2-L3 Managed Switch
What This Product Does:-

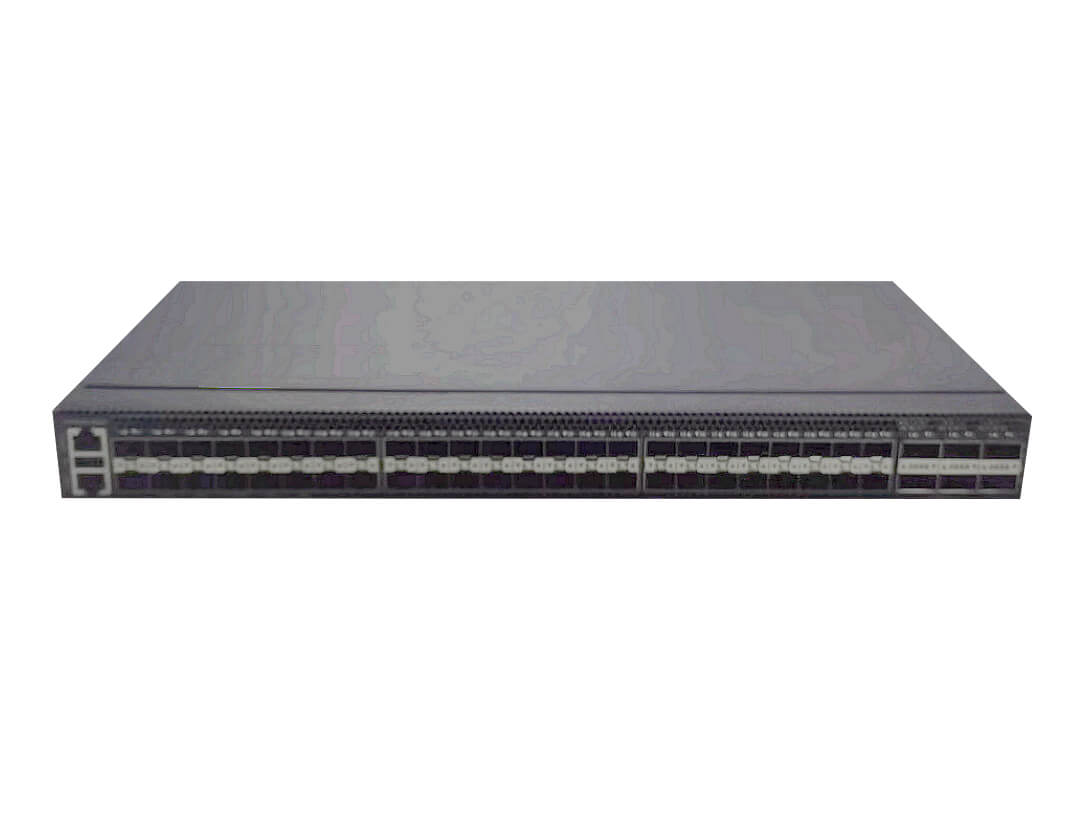

AirPro AP-S6200 is a L3 stackable routing switch with 100GE fiber uplink ports. It has advanced hardware and software architecture design, built-in modular 1+1 AC redundant power supplies, 3+1 redundant fans, cross ventilation and wind direction adjustable. It is ideal for high-density aggregation in Enterprise networks or Campus networks. It also provides data center features, such as VxLAN*, EVPN*, M-LAG*, Netconf*, Telemetry*, etc. So it is also ideal for the application scenarios of the new generation of 10G access and 100G aggregation data centers.
High Performance and scalability:-
With high switching capacity, the switches support wire-speed L2/L3 forwarding and high routing performance for Ipv4 and IPv6 protocols.
The 1G/10G Ethernet connectivity is accomplished via a hot-pluggable 1G SFP/10G SFP+ transceiver which supports distance up to 300 meters over multi-mode fiber and 10 to 120km over single-mode fiber (The distance depends the optical module chosen).
High Reliability:-
The series of switches support modular 1+1 redundant power supplies and 3+1 redundant fans. Business won’t be interrupted in case replacing power supplies and fans. System supports dual images. Even though the primary image was destroyed, system will still boot via backup image normally.
VSF (Virtual Switch Framework):-
As new generation data center switch, the switches support VSF which not only guarantees the flexibility, but also enhanced the scalability of datacenter network.
Rich L3 Features:-
The series of switches delivers high-performance, hardware-based IP routing, RIP, OSPF and BGP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. With The series of switches, customers could easily achieve Policy based Route (PBR), which is important when they need multi exit application.
MPLS/VPLS:-
The series of switches supports MPLS L3 VPN/MPLS L2 VPN (VPLS) and helps customer to construct more secure/extendable network. The switches could be deployed as P & PE devices, guarantees the variety of services.
Abundant IPv6 Support:-
The series of switches supports IPv6 switching and routing based on hardware for maximum performance. With increased network devices growing and the need for larger addressing and higher security becomes critical, the switches will be a right product to meet the requirement. The series of switches passed IPv6 form Phase II certification, which is the best proof of the application.
Strong Multicast:-
The series of switches supports abundant multicast features such as IGMPv1/v2/v3 snooping and fast leave and IGMPv1/v2/v3, PIM-DM, PIM-SM, PIM-SSM and even MSDP. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detection functions, the switches provide great application experience for customer.
